Queue Architecture

Technical architecture of the FIFO notification queue system.

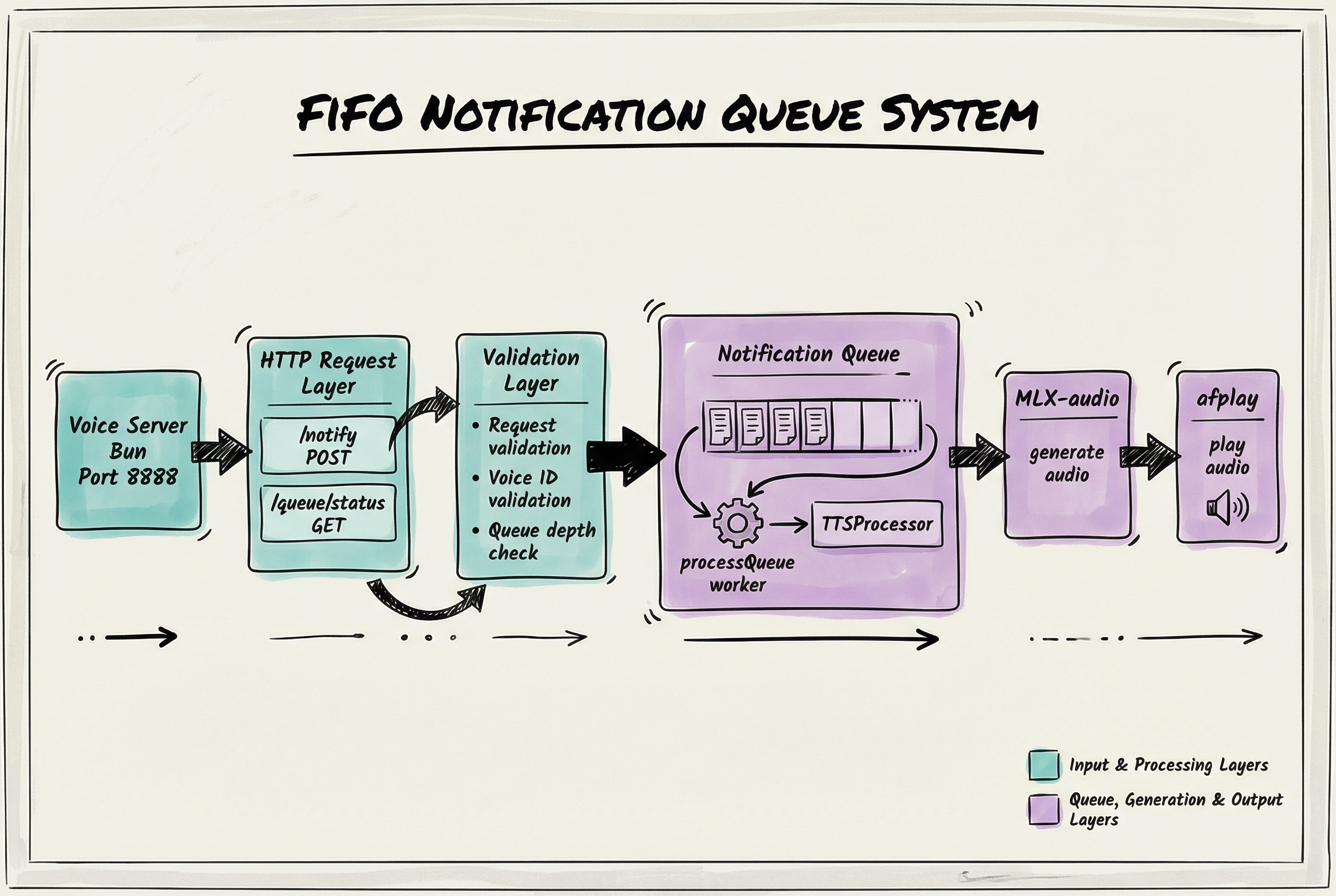

System Overview

Data Models

QueuedNotification

interface QueuedNotification {
  id: string;                    // Unique identifier
  request: NotificationRequest;  // Original request
  status: QueuedItemStatus;       // pending | processing | completed | failed
  arrivedAt: Date;                // When queued
  processingStartedAt?: Date;    // When processing started
  completedAt?: Date;            // When completed
  error?: string;                 // Error message if failed
}

QueueState

interface QueueState {
  depth: number;                    // Current queue depth
  processingStatus: QueueProcessingStatus;
  health: QueueHealth;               // healthy | degraded | unavailable
  metrics: QueueMetrics;
}

interface QueueMetrics {
  itemsProcessed: number;          // Total processed
  itemsFailed: number;             // Total failed
  averageProcessingTimeMs: number; // Avg processing time
}

Request Flow

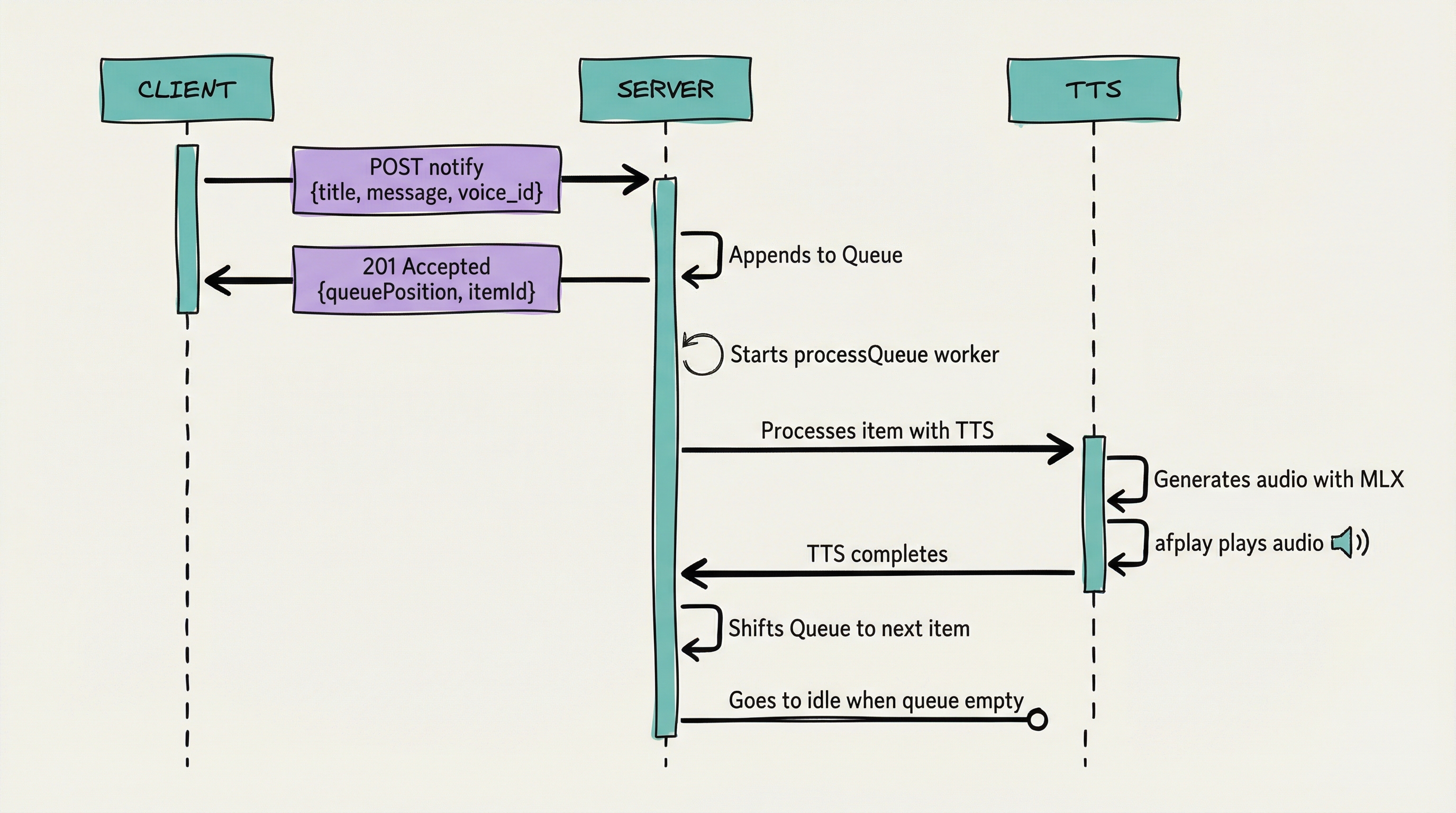

Successful Notification Flow

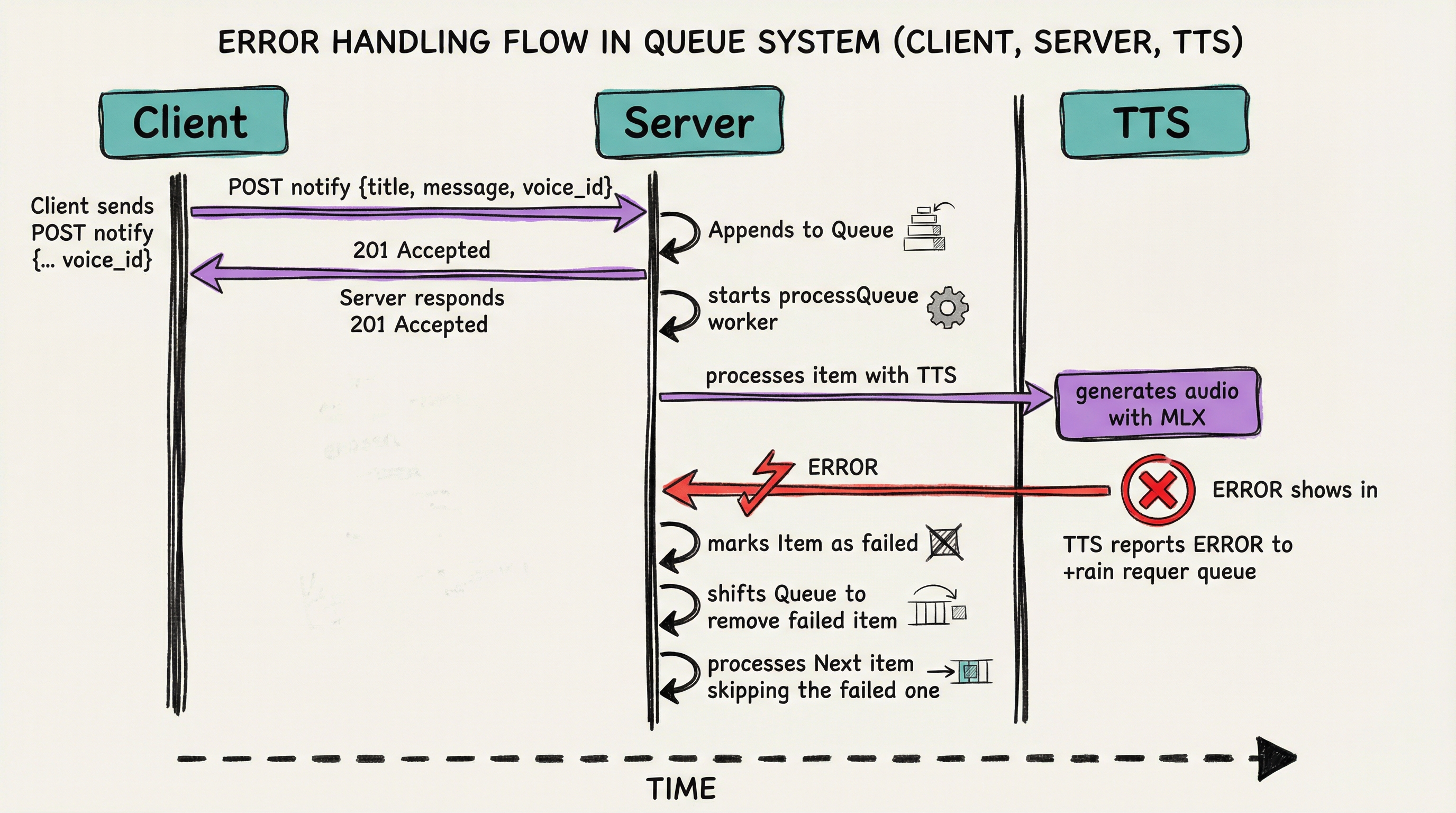

Error Handling Flow

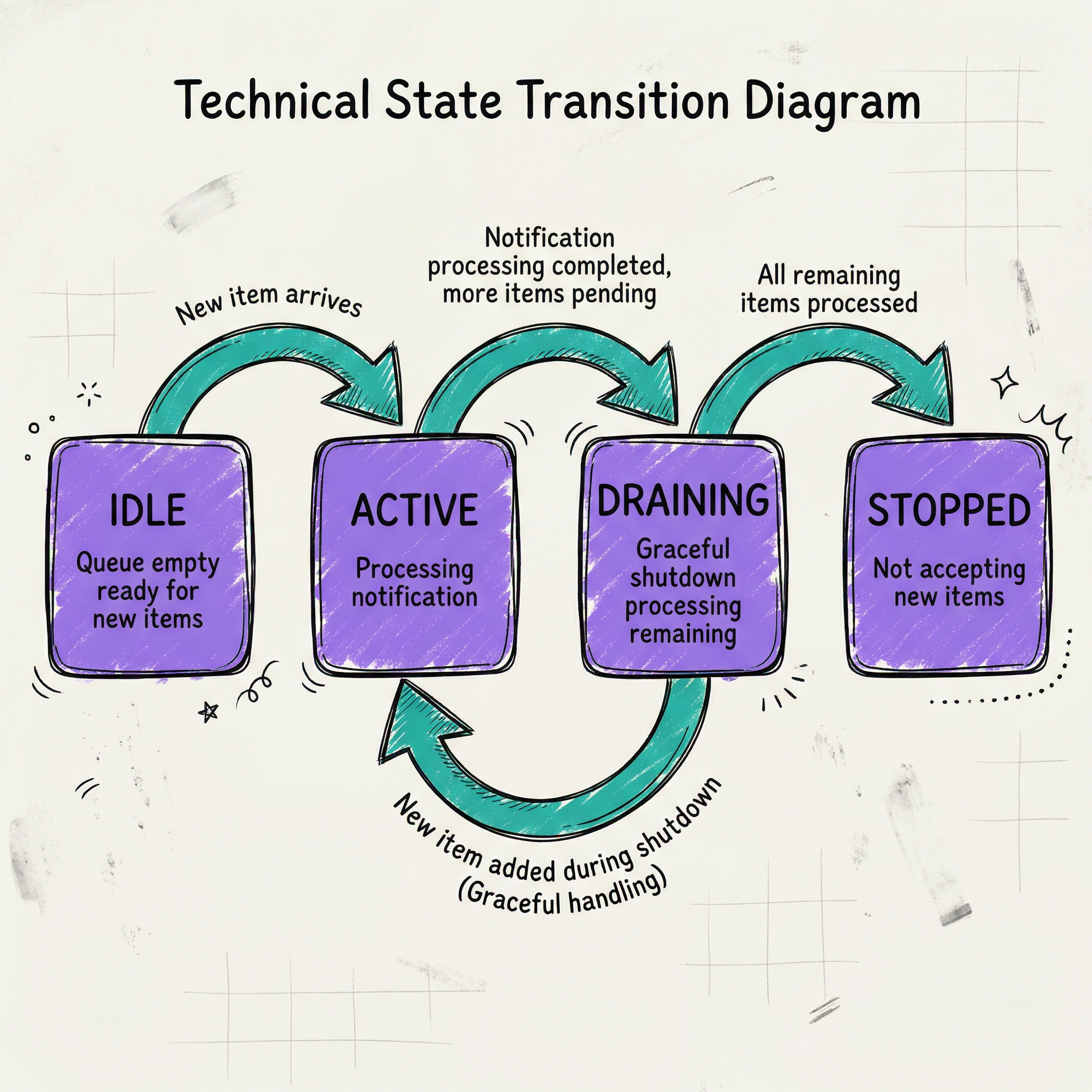

Queue States

Component Interactions

NotificationQueue Class

class NotificationQueue {
  private queue: QueuedNotification[] = [];
  private processingStatus: QueueProcessingStatus = "idle";
  private isProcessing = false;
  private ttsProcessor: TTSProcessor;

  async enqueue(request): Promise<EnqueueResult> {
    // 1. Validate request
    // 2. Check queue depth
    // 3. Add to queue
    // 4. Start processing
    // 5. Return 201 Accepted
  }

  getQueueState(): QueueState {
    // Return current state
  }

  async drain(): Promise<DrainResult> {
    // 1. Set status to draining
    // 2. Wait for queue empty (30s timeout)
    // 3. Stop accepting new items
  }

  private processQueue(): Promise<void> {
    // Single worker processes items sequentially
    while (queue.length > 0 && status !== "stopped") {
      // Process item, handle errors, shift queue
    }
  }
}

TTS Processing Pipeline

async function processTTSWithMacOSNotification(request): Promise<void> {
  // 1. Sanitize input
  // 2. Resolve voice settings
  3. Display macOS notification (optional)
  // 4. Process TTS:
  //    a. Generate audio with MLX-audio
  //    b. Play with afplay
  //    c. Clean up temp file
}

Performance Characteristics

Throughput

• Accept Rate: ~10 requests/second (limited by queue depth)
• Processing Rate: ~1 notification/7 seconds
• Queue Depth: 100 items maximum
• Burst Capacity: Can handle bursts of rapid requests

Latency

• 201 Response: < 100ms (immediate acceptance)
• First Audio: ~7-10 seconds (TTS generation + playback starts)
• Complete Processing: ~7-10 seconds per notification

Resource Usage

• Memory: ~1KB per queued item
• Disk: Temporary audio files (~100KB each, auto-cleaned)
• CPU: MLX-audio TTS generation (Apple Silicon optimized)

Security Considerations

Input Validation

• Title and message sanitized before TTS
• Voice ID validated against available voices
• Request size limits enforced

Rate Limiting

• Applied before queue admission
• Separate 429 response for queue full
• Per-client rate limits available

Error Isolation

• Failed notifications don't block queue
• TTS failures logged but don't crash server
• Graceful degradation on errors

Monitoring

Health Metrics

{
  "depth": 5,
  "processingStatus": "active",
  "health": "healthy",
  "metrics": {
    "itemsProcessed": 156,
    "itemsFailed": 2,
    "averageProcessingTimeMs": 7123
  }
}

Health Indicators

Health	Condition
healthy	Queue depth < 50, TTS working
degraded	Queue depth ≥ 50 OR slow processing
unavailable	TTS failures > 50% of requests

Logging

Key log messages for monitoring:

• Notification queued - New item added
• Processing queued notification - Processing started
• Notification processed successfully - Item completed
• Notification processing failed - Item failed
• Queue drain complete - Shutdown complete
